Wall-mounted modular speakers. Designed by you.

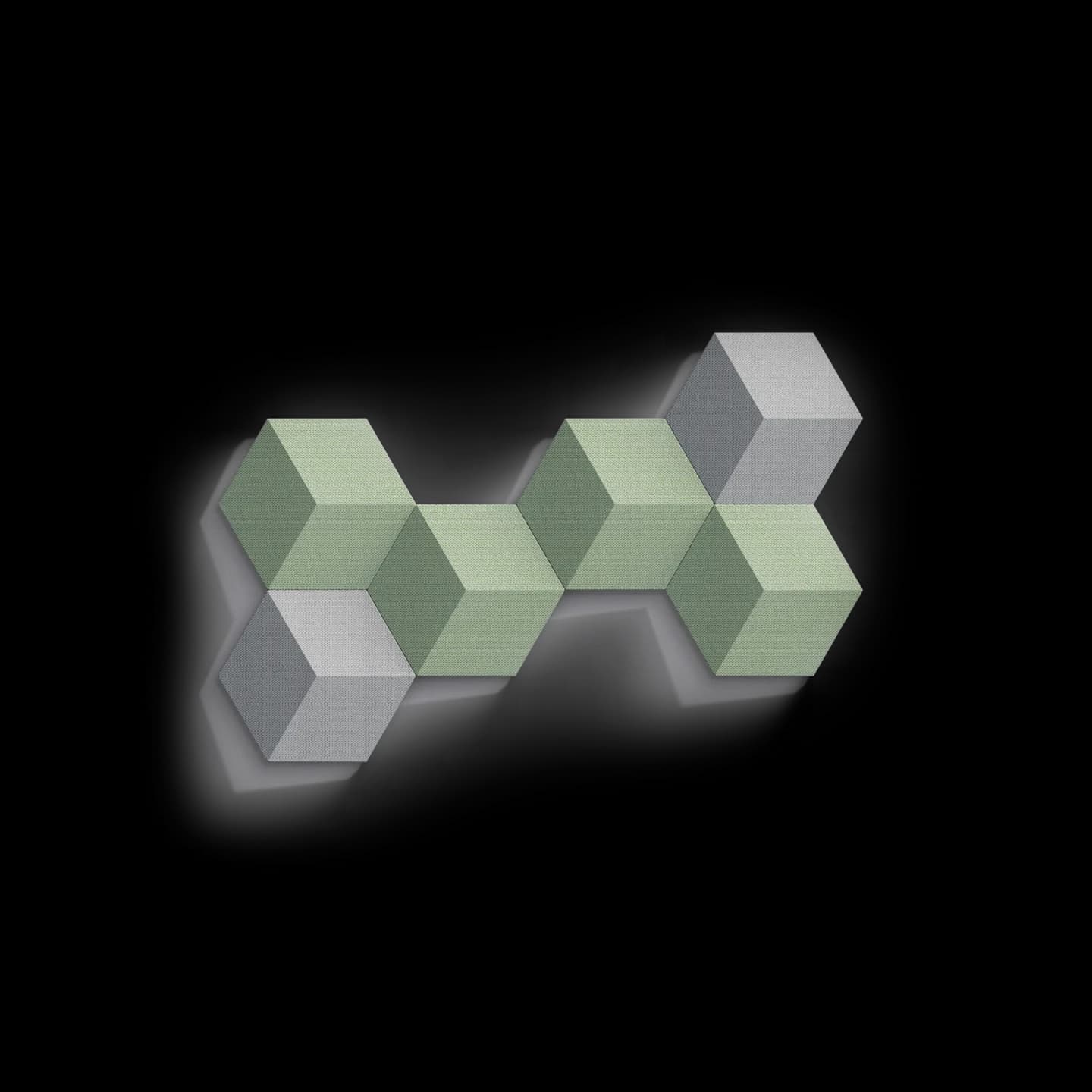

Beosound Shape

Beosound Shape

Modular, wall-mounted speaker

Select color

Meadow Green Define / Grey Define Kvadrat
Meadow Green Define / Grey Define Kvadrat

Immersive sound, customisable design and integrated noise dampers for design-conscious music lovers. Modular speakers built to grow with you. *Prices listed represent starting prices. Installation and cables are not included, as they depend on the individual setup.

Contact us for pricing

Compose yours

Popular variants

Define and redefine your perfect shape

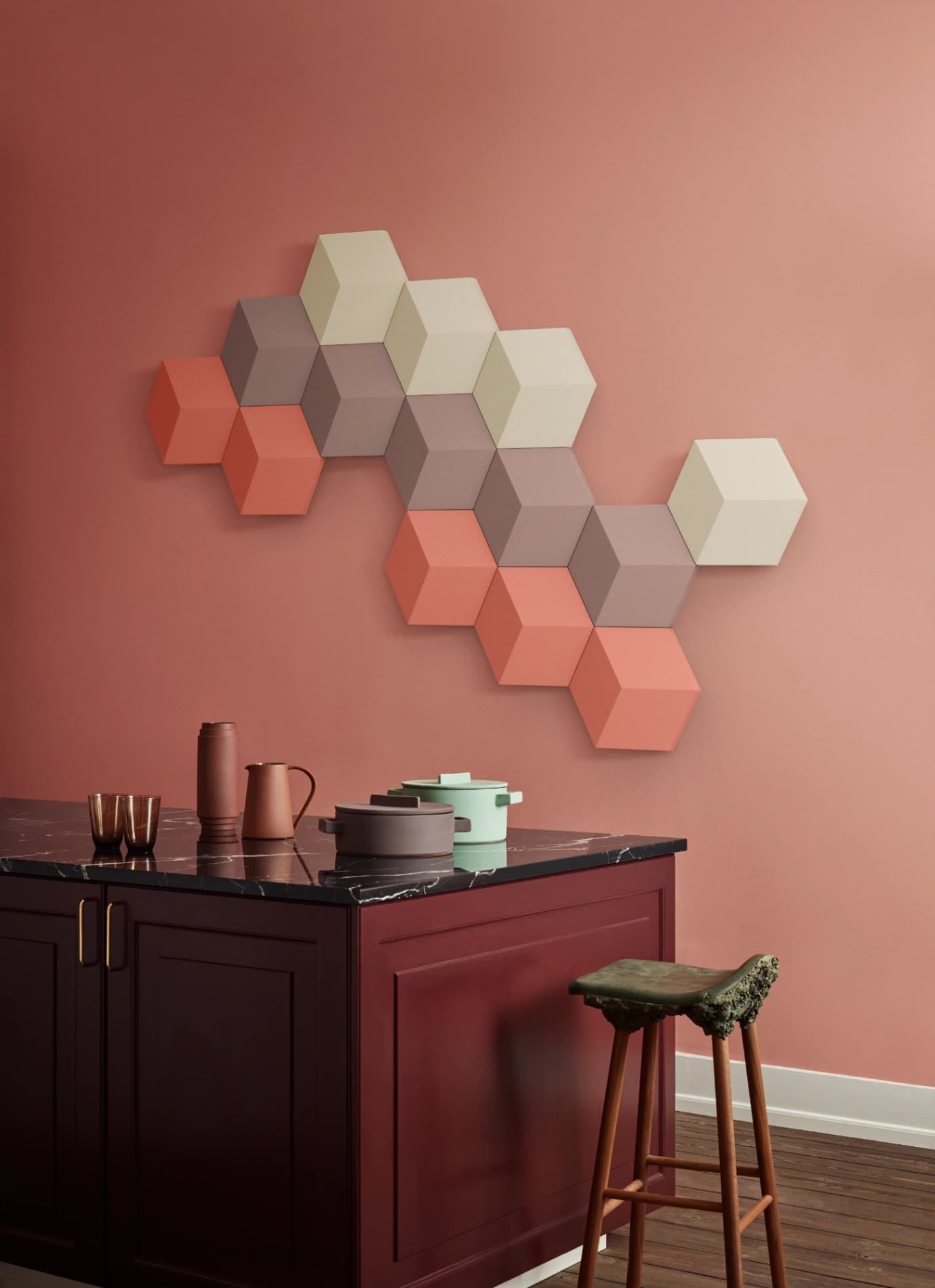

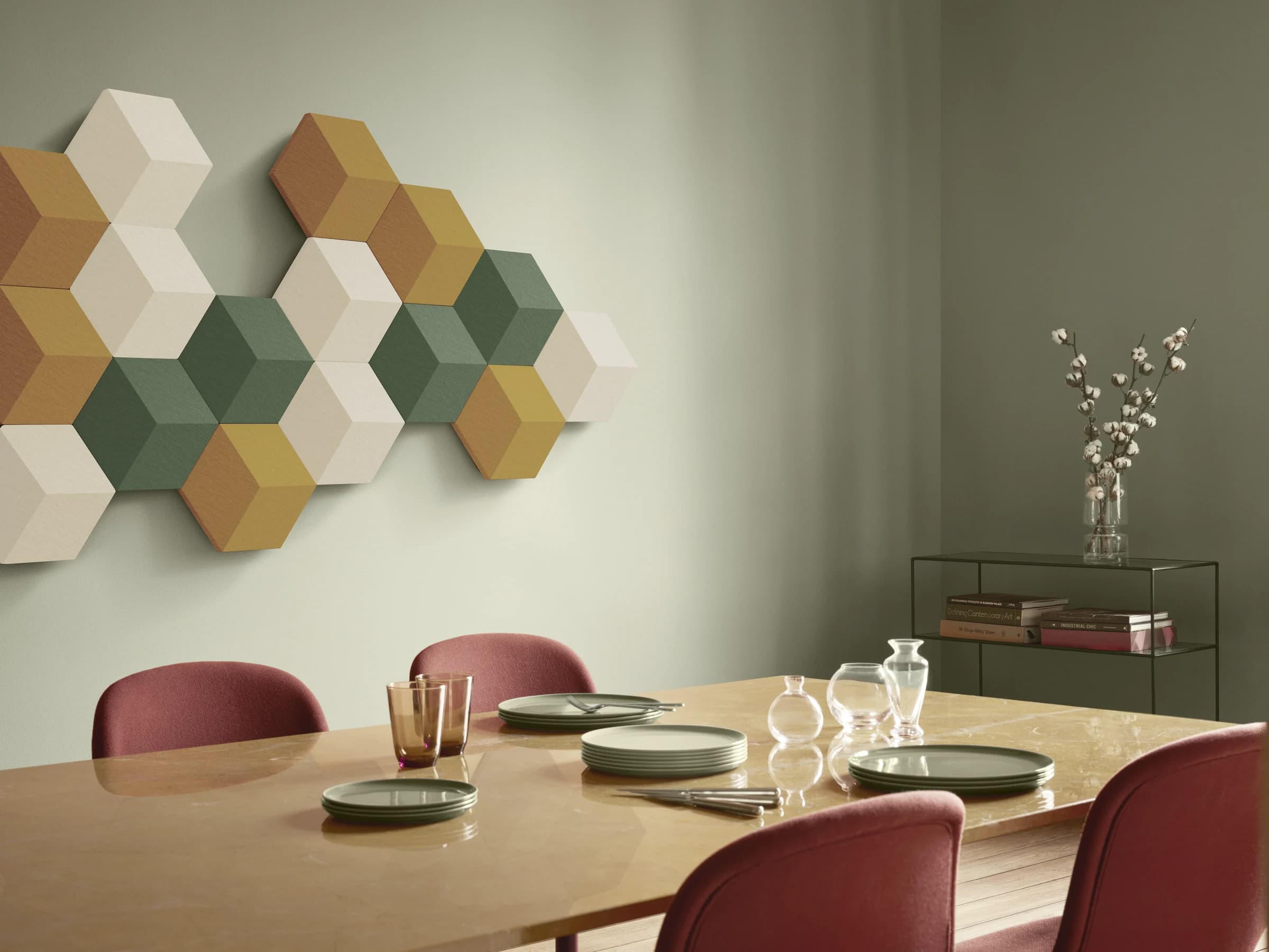

Beosound Shape is a uniquely flexible speaker system that can grow and evolve with the changing ways you live. Rearrange the tiles to form a new pattern, change the colours when you redecorate or add more tiles to boost sound performance or acoustic damping properties.

Beosound Shape is a uniquely flexible speaker system that can grow and evolve with the changing ways you live. Rearrange the tiles to form a new pattern, change the colours when you redecorate or add more tiles to boost sound performance or acoustic damping properties.

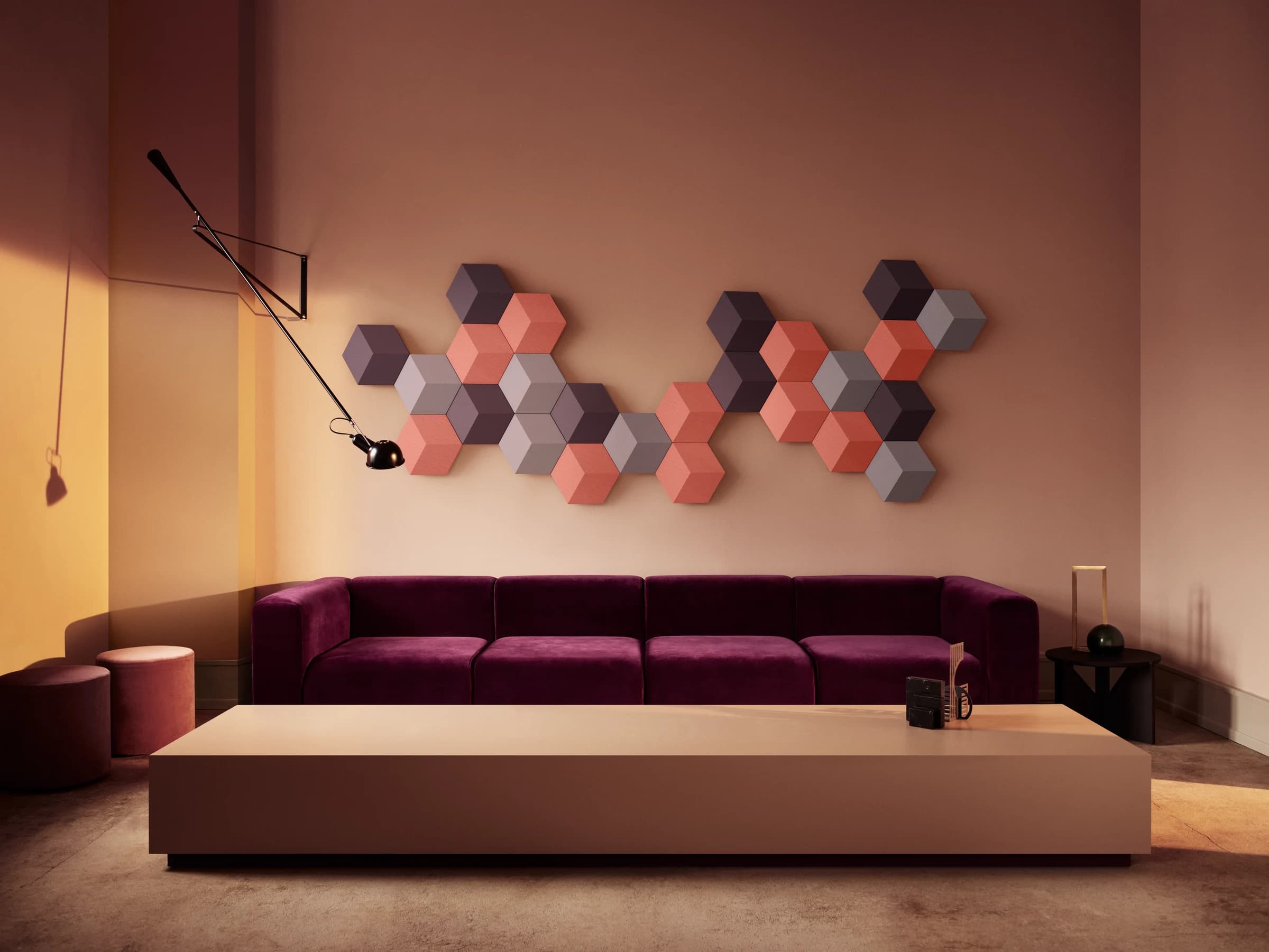

Beosound Shape is designed to match your interior style.

Beosound Shape is designed to match your interior style.

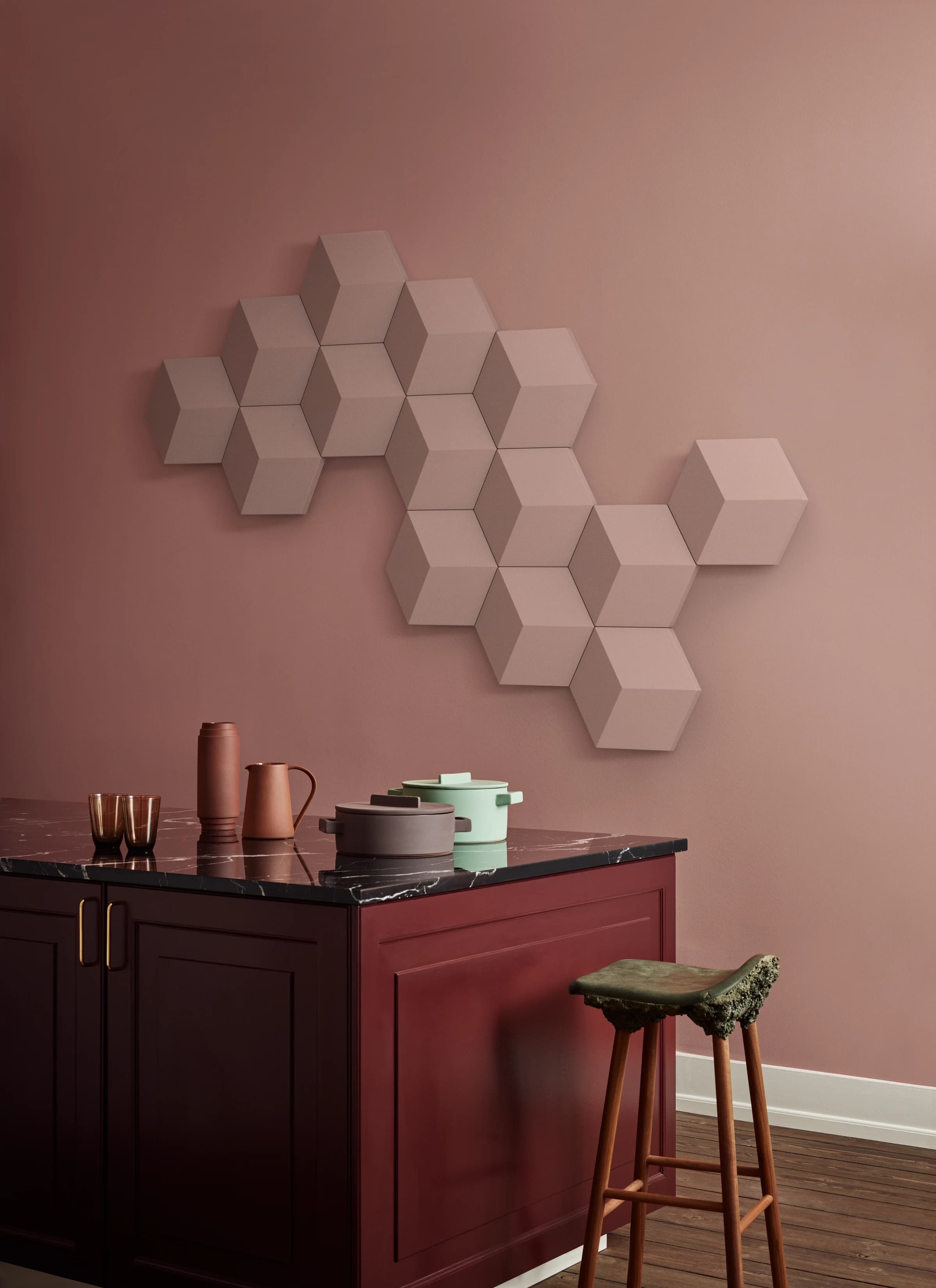

Fabrics from Kvadrat

Fabrics from Kvadrat

Make music a tactile and aesthetic experience with high-quality fabric covers, including exclusive fabrics from Kvadrat.

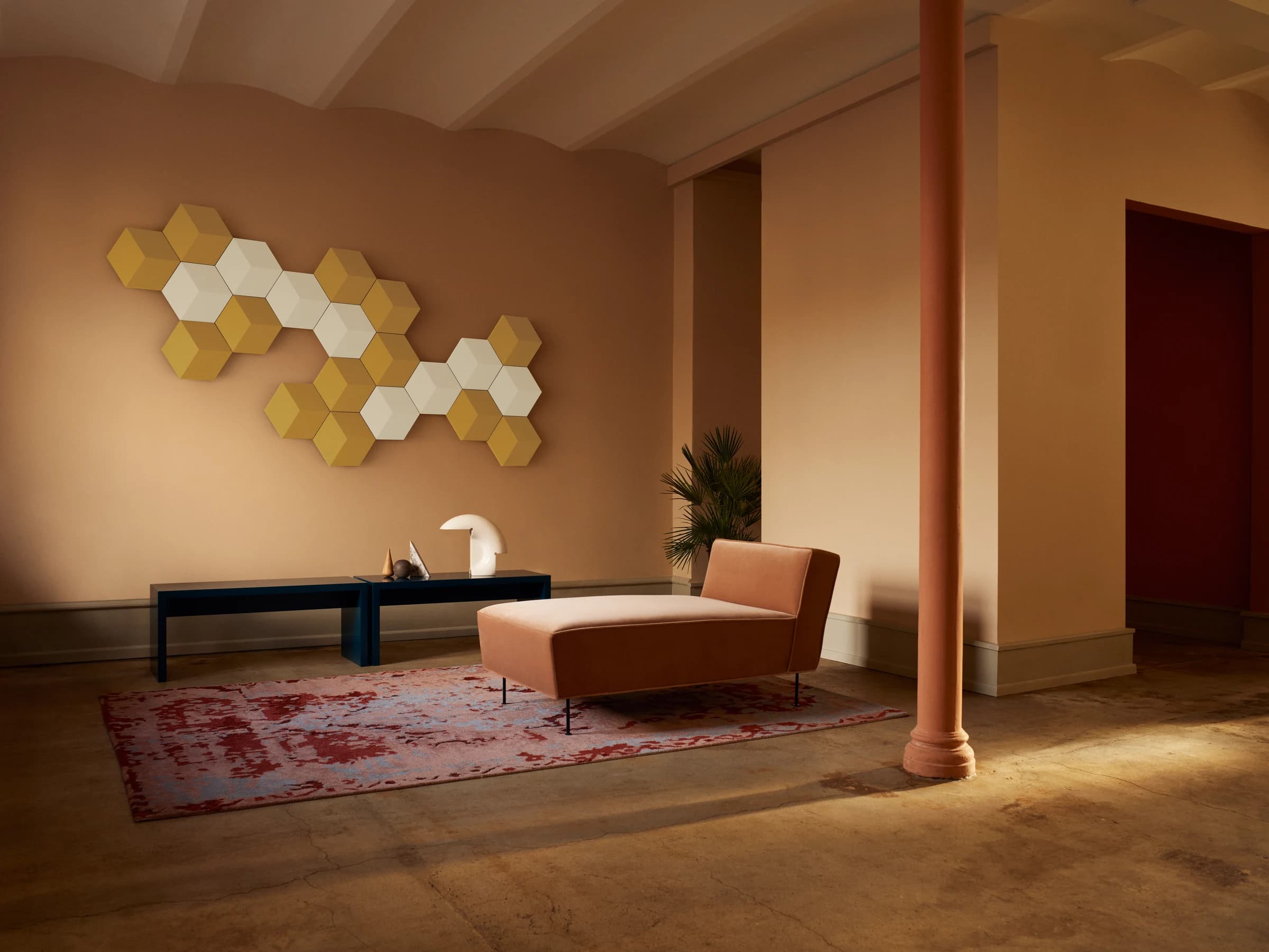

Create your own design

Create your own design

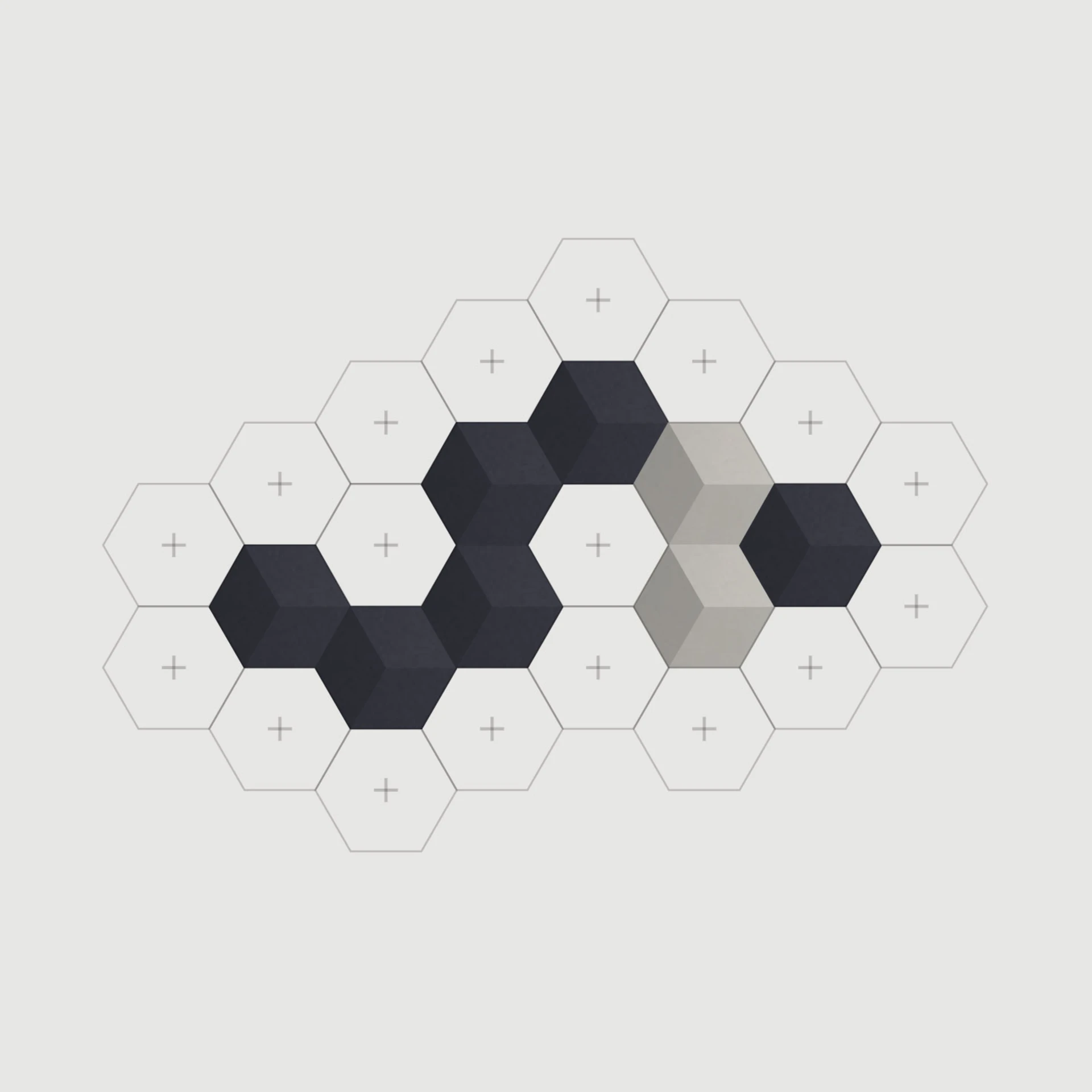

No two configurations are likely to be the same, and that's the whole beauty. Yet each one will undoubtedly leave a lasting visual imprint – on every wall and every room. Try our configuration tool to create your personal Beosound Shape design. Start by defining the pattern and look. Complete your design by choosing a performance level that matches your needs.

Read more
The heart of your music

The heart of your music

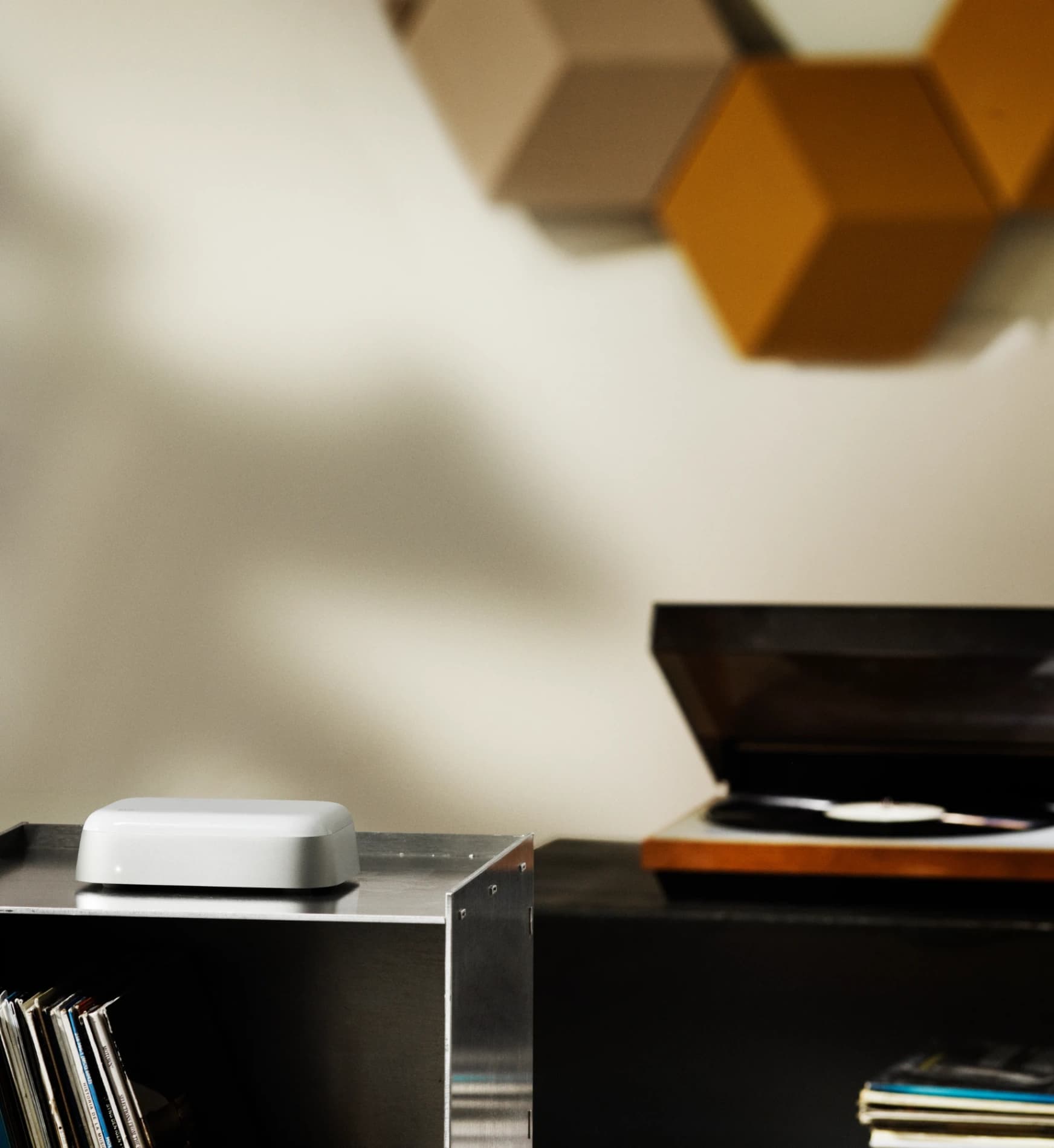

At the heart of the system lies our Beoconnect Core connectivity hub. A small built-in box that lets you stream music directly from your phone or tablet via Google Cast, Apple AirPlay and Bluetooth.

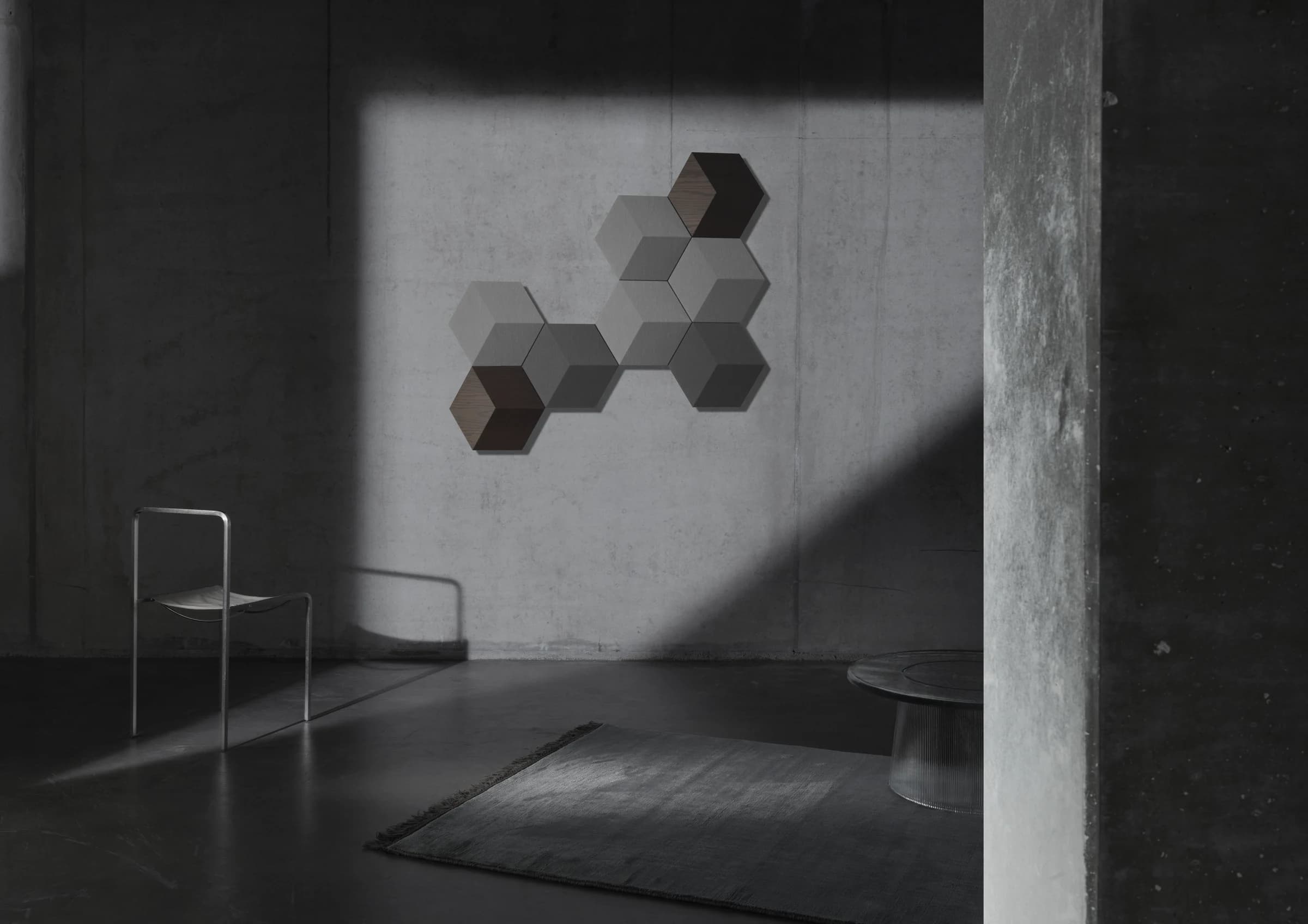

A band on your wall

A band on your wall

Prepare for an innovative and social music experience that brings ‘the band’ right into your room. Beosound Shape cleverly utilises a setup with multiple speakers to deliver a concert-like perception of singer and instruments. Book a demo, to feel the sensation.

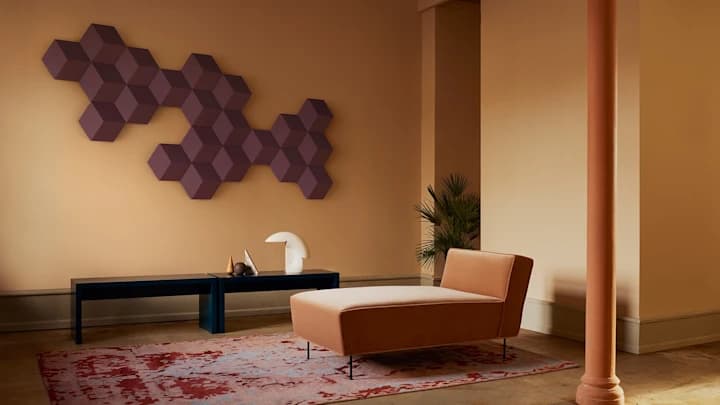

Turn down the noise

Turn down the noise

Poor indoor acoustics makes even the most beautiful room unpleasant to be in. Relieve the problem by integrating acoustic damper tiles when you design your Beosound Shape.

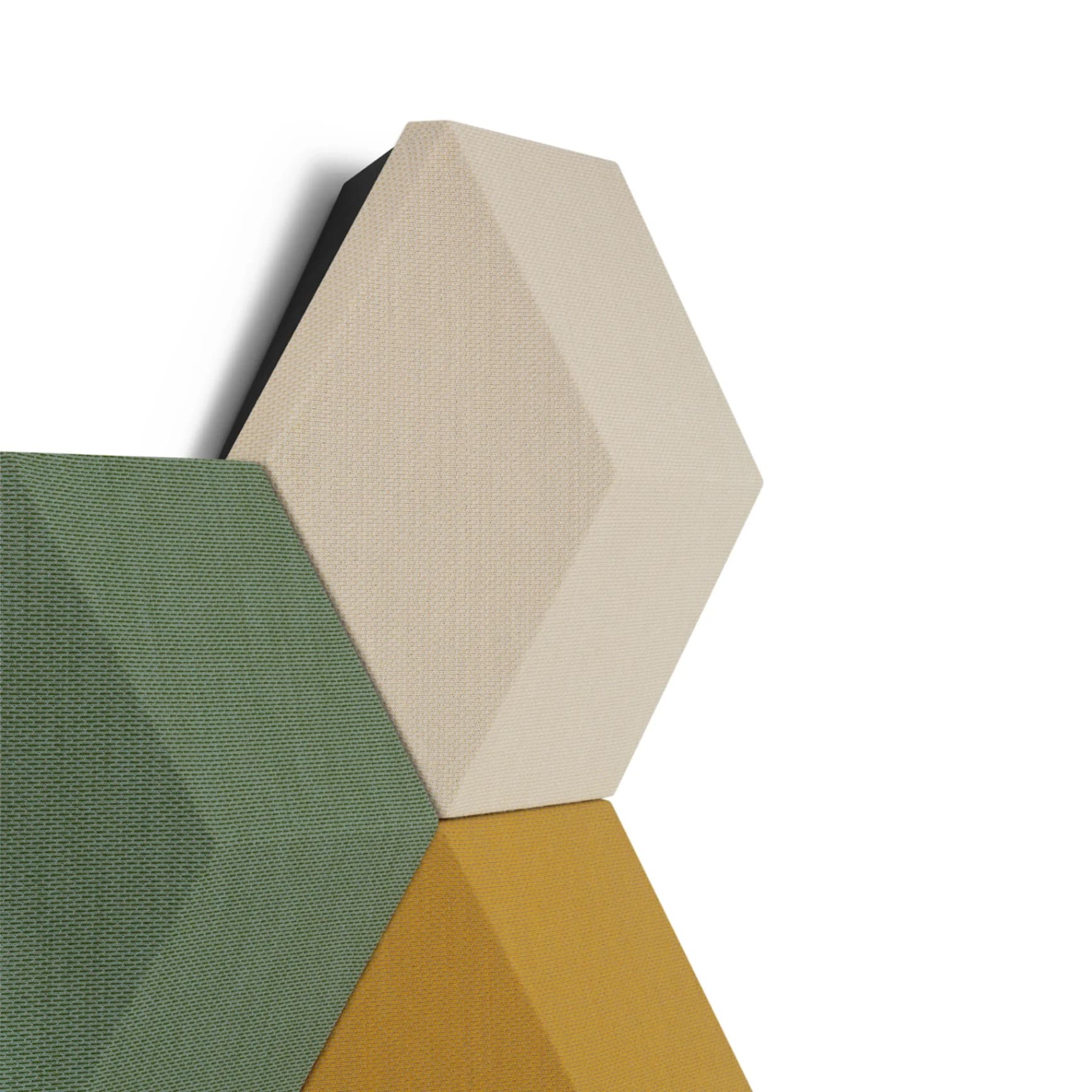

All-in-one speaker system

All-in-one speaker system

Beosound Shape is more than just a wireless speaker. It is a complete audio system that can boast as many as 40 individual speakers, playing your digital music in rich and high-res audio quality.

Custom Design

Custom Design

Kitchen? Executive boardroom? Public restaurant? With the vast colour choices and modular design concept, Beosound Shape can be customised to match and elevate any living space.

Technical specifications

Recommended Room Size20-100 m²
Speaker ConfigurationPer Speaker Tile: 1 x ¾” tweeter, 1 x 5 ¼” woofer
AmplifierPer Amplifier: 8 x 80 Watt class D, Maximum speakers per amplifier: 4
Frequency Range30 - 22.000 Hz (8 tiles set up)
Maximum Sound Pressure Level (SPL) @ 1 m105 dB (8 tiles set up)
Bass Capability89dB (SPL) (8 tiles set up)
Advanced Sound FeaturesAdaptive Bass Linearization ,Thermal Protection
DesignerØivind Alexander Slaatto
MaterialsTextile, Polymer
Dimensions36.4 W x 32.0 H x 11.1 D cm (1 Tile)
Maximum Amplifier Tiles: 10
Maximum Speaker Tiles: 44
Acoustic Damper Tiles:unlimited
Weight:Speaker Tile: 1.9 kg + 0.4 kg (fabric cover), Amplifier Tile: 2.0 kg + 0.4 kg (fabric cover), Damper Tile :0.51 kg + 0.4 kg (fabric cover)
Power supply100-240V 50/60Hz mains cable
Bluetooth versionBluetooth 5.3
Bluetooth CodecsAndroid: SBC, iOS: SBC, AAC
Wi-FiDual-Band Wi-Fi (2.4 & 5 GHz), IEEE 802.11 b/g/a/n/ac/ax
Streaming ServicesApple AirPlay, Spotify Connect , Google Cast, TIDAL Connect, B&O Radio, Deezer, QPlay 2.0
Beolink MultiroomSeamlessly connect multiple Bang & Olufsen speakers to expand your music experience.
Physical ConnectionsSpeaker Tile: 1 x Speaker 4-Wire Input
Amplifier Tile:4 x Speaker 4-Wire Output, 1 x Optical-In, 1 x Power Link (RJ45), 1 x Comm In (Amplifier Input), 1 x Comm Out (Amplifier Output), 1 x USB-B, 1 x Power
Beoconnect Core:1 x Power, 1 x USB-C (Digital Performance Output), 1 x HDMI eARC (for TV-integration), 1 x Ethernet, 1 x COMM (for Beosound Shape), 1 x Powerlink (Stereo), 1 x Line-In
Remote ControlsBang & Olufsen App, Beoremote One BT, Beoremote Halo
